WingtraOne Drone
- Efficient fixed-wing flight
- 42 MP camera
- No more GCPs, checkpoints only
- Lower image overlaps
- Ready to fly in five minutes
- Pre-flight checklist
- Fully autonomous
Surveying & Mapping Drone - WingtraOne Drone

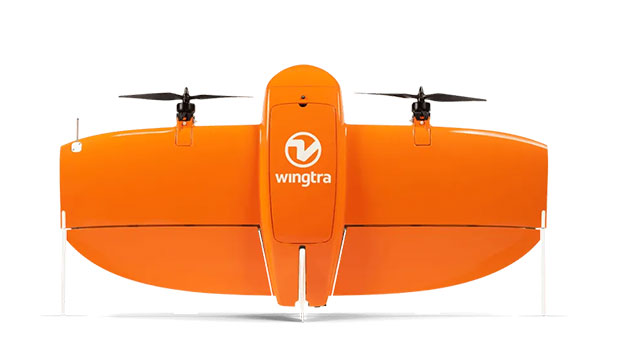

KBSE offers the WingtraOne Drone, a Swiss-engineered VTOL (vertical take-off and landing) UAV designed for high-efficiency aerial mapping and surveying. Combining multirotor flexibility with fixed-wing endurance, WingtraOne delivers up to 59 minutes of flight time efficiently covering vast areas in a single mission, even in challenging terrain. Its VTOL design allows operation from confined spaces, while the smooth vertical landing protects camera payloads from ground impact. Equipped with top-tier camera options like the Sony RX1R II, the platform achieves exceptional image quality down to 0.7 cm/px ground sampling distance, with centimeter-level absolute positional accuracy enabled via integrated PPK GNSS. WingtraPilot software simplifies mission planning and execution using an included rugged tablet, making the system accessible even to users with minimal drone experience. Built in Switzerland and subjected to over 300 quality checks, it reliably supports professional operations across agriculture, infrastructure inspection, mining, and environmental monitoring.
Specifications
- Drone type: Tailsitter vertical take-off and landing (VTOL)
- Maximum take-off weight: 4.8 kg (10.6 lb)
- Payload capacity: 800 g (1.8 lb)
- Flight planning and mission: WingtraPilot
- Tablet: Rugged Samsung Galaxy Tab Active 3, water and dust resistant, MIL-STD-810-certified, WingtraPilot pre-installed
- Flight speed: 16 m/s (35.8 mph)
- Wind resistance: Max sustained wind: 12 m/s (27 mph) Max wind gusts: 18 m/s (40 mph) Max sustained wind on the ground: 8 m/s (19 mph)
- Maximum flight time: Up to 59 min
