UC-400
- With 2 CIS, Non-stop counting with reject pocket.
- Fake note check: The reason of rejection can be checked.
- Serial number: The serial numbers of the notes can be checked.
- Authenticating function strengthened by IR / UV / MG / IMAGE.
- Face / Orientation / Version / Denomination notes sorting.
- Improved feeding mechanism, easy to remove jam bills.
- Basic Fitness Sorting.
- Multi language interface.
- Available currencies select: PKR, USD, EUR, GBP, RUB, CHF, MOP, THB, CAD, HKD, JPY, KRW, THB, SGD.... up to 60.
- Interface: RS-232, USB, SD Card.
- Options: Customer Display / Thermal Printer / PC Connection.
- Touch panel and big size TFT display.

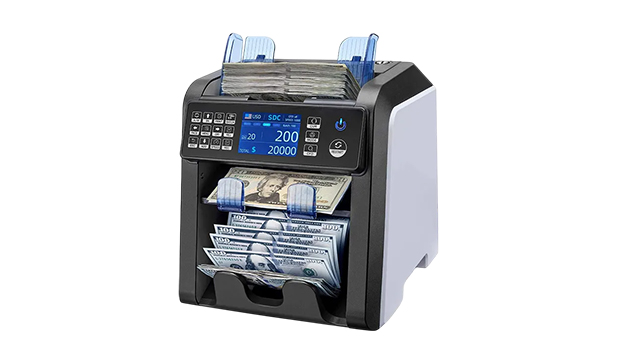

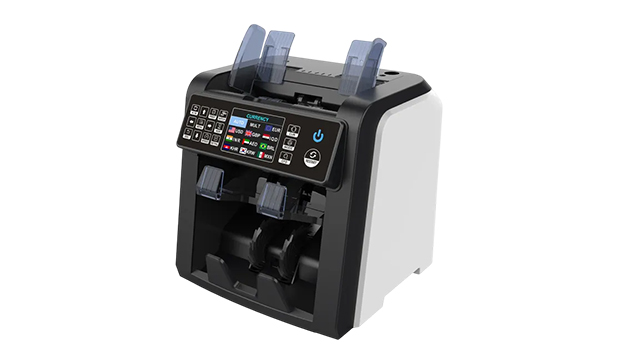

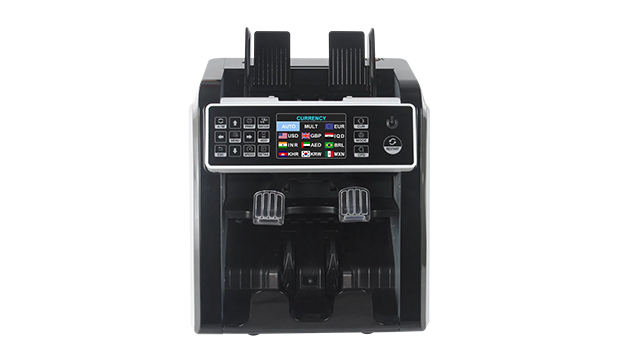

Cash Counting Machine - UC-400
The UC‑400 is a high-performance note counting machine available through KBSE, engineered for professional cash handling needs. Equipped with dual‑CIS image scanners, it offers non-stop counting with a built-in reject pocket for problem notes and records the reason for rejection during processing. It features comprehensive counterfeit detection including UV, magnetic (MG), infrared (IR), and image-based validation and supports currency sorting by face, orientation, version, and denomination. The integrated serial number recognition enhances audit functionality and improves security when processing large batches. With KBSE’s nationwide support and technical assistance, the UC‑400 ensures efficient, accurate cash operations for banks, retail cash desks, and corporate finance centers across Pakistan.
Specifications
- Hopper Capacity: 500 bills
- Stacker Capacity: 200 bills
- Counting Speed: 900 pcs/min (MDC & SDC MODE) 900, 1200, 1500pcs/min (CNT MODE only)
- Dimension: 279x250x247 mm
- Power Supply: AC 100-240V 50-60 Hz
- Size of Countable Notes: 50x110-90x190cm
- Thickness of Countable Notes: 0.075-0.15mm
- Net Weight: 9.5 kg
- Gross Weight: 10.0 kg
- Power Consumption: 80W
- Reject Stacker Capacity: 50 notes
