Trimble X7
- Reliable field workflows suitable for all users.
- Intuitive Trimble Perspective software to operate, manage, view and validate scan data.
- Fast image capture with trimble "VISION" technology.
- Compact and lightweightfor easy transport and mobility.
- Unique Trimble Registration Assist for automatic registration, refinement, and reports to leave the site with confidence.
- High sensitivity time of flight EDM to effectively capture dark and reflective surfaces.
- Reliable IP55 rating and industry leading 2-year standard warranty.

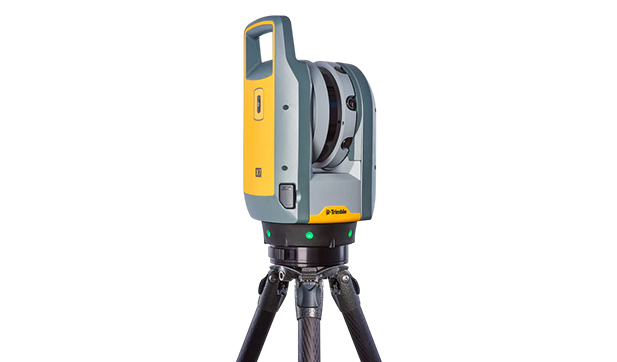

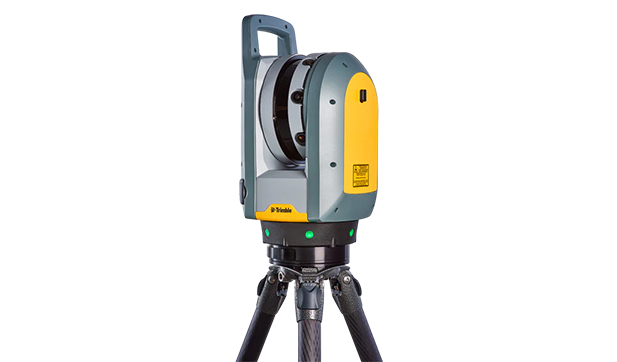

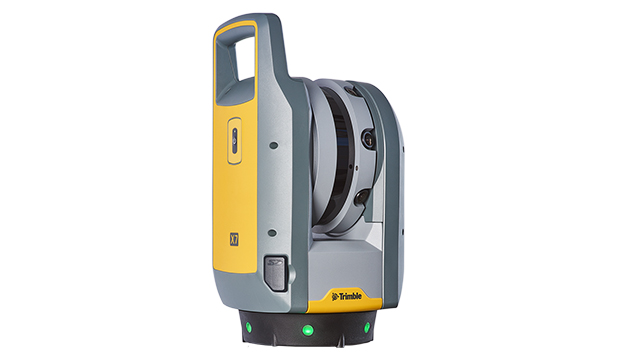

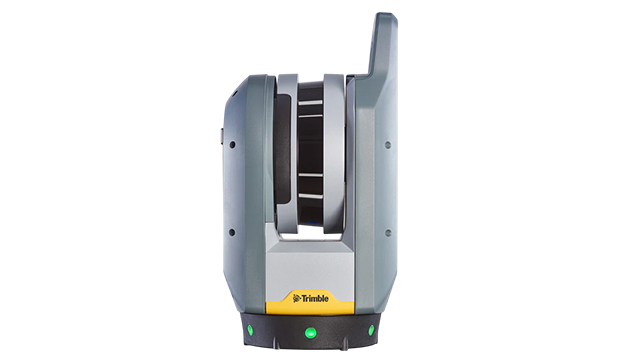

3D Laser Scanner - Trimble X7
The Trimble X7 3D Laser Scanner revolutionizes surveying and imaging workflows by combining automatic calibration, survey-grade self-leveling, and automatic in-field registration to deliver accurate results with minimal manual setup. Designed for professionals across construction, industrial surveying, forensics, and cultural heritage preservation, the X7 empowers users to swiftly capture high-resolution point clouds with confidence. Its rugged IP55-rated housing and compact form make it reliable in demanding outdoor or indoor environments regardless of conditions. Seamlessly integrated with Trimble Perspective on the T10 rugged tablet, the X7 supports intuitive workflows and automatic registration of scans on-site. Professionals appreciate its portability and ease‑of‑use, enabling rapid deployment without needing deep scanning expertise. Backed by a 2‑year warranty, the Trimble X7 delivers reliability, efficiency, and high‑precision data capture for diverse field applications.
Specifications
- Scanning EDM Laser Class: Laser class 1, eye safe in accordance with IEC EN60825-1
- Scanning Speed: Up to 500kHz
- Imaging Sensors: 3 coaxial, calibrated 10MP cameras
- Raw Image Capture: Fast 1 minute - 15 images - 158MP Quality 2 minutes - 30 images - 316MP
- Operating Temperature: –20 °C to 50 °C (–4 °F to 122 °F)
- Scan Duration4: Fastest 1 min 34 sec without images, 2 min 34 sec with images
- Range Principle: High speed, digital time-of-flight distance measurement
- Operating temperature range: –20 °C to 50 °C
- Weight & Size: 5.8 kg (12.78 lbs), 178 mm (W) x 353 mm (H) x 170 mm (D)
