Trimble SX10
- Combines surveying, imaging and high speed 3D scanning in one revolutionary solution.
- Trimble's high accuracy Lightning 3DM technology provides scanning range up to 600 m and the smallest spot size in the industry—a mere 14 mm at 100 m.
- Utilizes Trimble Lightning scanning technology to scan up to 26,600 points per second captures a full dome scan in as little as 12 minutes.
- Improved Trimble VISION™ technology allows for fast and easy capture of high resolution site imagery.
- Complete integration with familiar workflows of Trimble Access and Trimble Business Center Software.

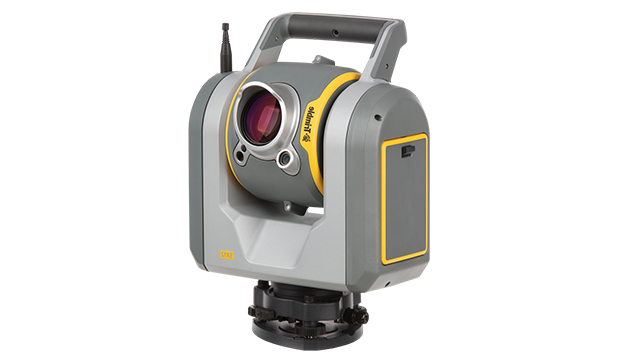

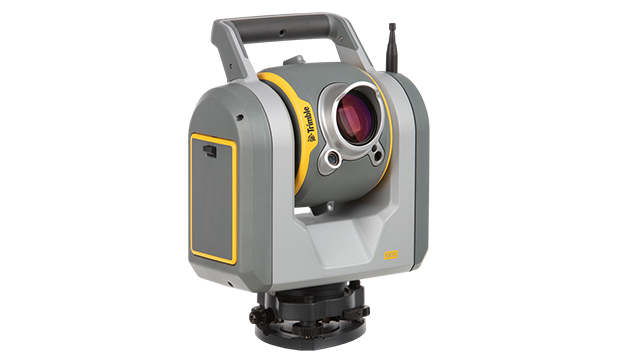

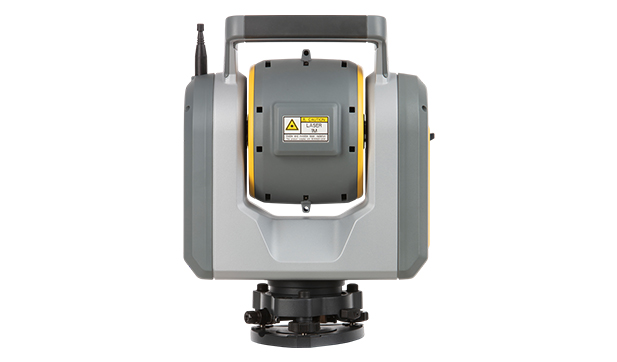

Scanning Total Station - Trimble SX10
The Trimble SX10 is a groundbreaking scanning total station that combines high-precision surveying, 3D laser scanning, and advanced imaging in a single powerful system. Designed for professionals who demand speed, accuracy, and versatility, the SX10 streamlines workflows by eliminating the need for separate scanning and total station equipment. Its advanced technology enables detailed data capture for topographic surveys, as-built documentation, and infrastructure inspection. With seamless integration into the Trimble Access and Business Center software, it ensures efficient data processing from field to office. The system’s high-resolution imaging and dense point cloud capture make it ideal for complex environments. Trusted by surveyors and engineers worldwide, the Trimble SX10 sets a new standard for modern geospatial solutions.
Specifications
- Light source: Pulsed laser 1550 nm; Laser class 1M
- Laser spot size at 100 m (FWHM): 14 mm
- Cameras total field of view: 360° x 300°
- Resolution of each camera chip: 5 MP (2592 x 1944 pix)
- Total zoom (no interpolation): 84x
- Communication: WiFi, 2.4 Ghz Spread Spectrum, cabled (USB 2.0)
- IP-rating: IP55
- Operating temperature range: –20 °C to 50 °C
- Security: Dual layer password protection
