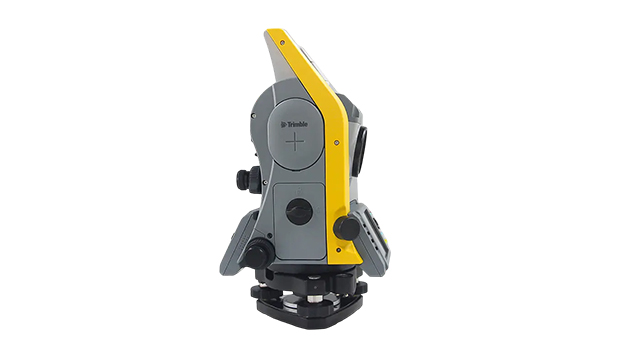

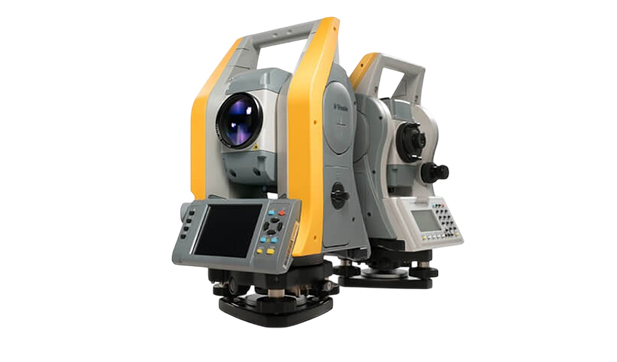

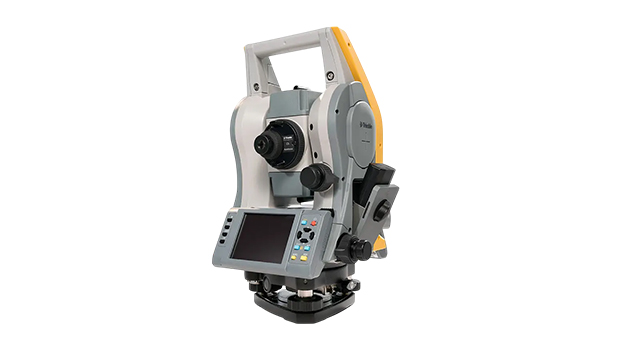

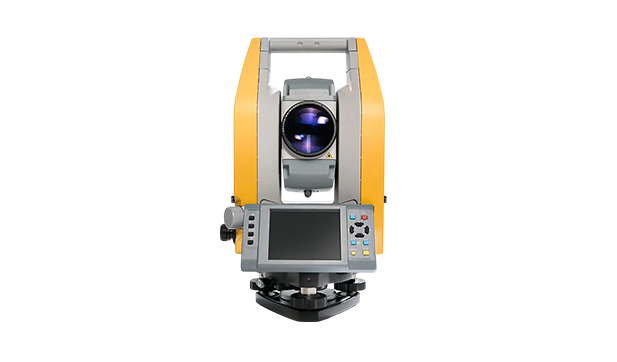

Trimble C5 HP
- Trimble C5 model with powerful, fast EDM excels at long range measuring. This EDM also enables Autofocus for precise and fast focus increasing efficiencies and eliminating downtime in the field.
- Trimble C5 High Precision (HP) model specializes in reflectorless edge measurements using a small EDM beam.
- Trimble Access™ software onboard to facilitate your everyday work, including topographic surveys, staking. and control.
- Fully integrated with Trimble Business Center Office Software to manage, process, and create customer deliverables with confidence and quality.
- Dual color touchscreen displays.
- Trimble L2P security location technology.
- Compact, lightweight and rugged.
High‑Precision Mechanical Total Station - Trimble C5 HP
KBSE proudly introduces the Trimble C5 HP, a high‑precision mechanical total station built for demanding surveying projects and tight-tolerance work environments. Engineered with exceptional accuracy, the C5 HP delivers angular precision options of 1″, 2″, 3″, or 5″, and EDM prism accuracy of 1 mm + 1.5 ppm and reflectorless accuracy of 2.0 mm + 2 ppm, ideal for edge and corner measurements without prisms. With a maximum range of 3,000 m to prism or 500 m in reflectorless mode, it performs reliably even in complex jobsite conditions. Despite its robust build, the unit remains fairly portable at around 4.4 kg, making it suitable for long days of fieldwork across rugged terrain. The C5 HP features dual-color touchscreen displays running Trimble Access™ software for intuitive operations and faster workflows. Designed for all-weather use, it offers extended battery life, operates in temperatures from –20 °C up to 50 °C, and includes dual-axis tilt sensors for correct measurements even on sloped setups. With this total station, KBSE delivers reliable precision, rugged durability, and enhanced productivity for professional surveyors.
Specifications
- Accuracy: 1", 2", 3" or 5"
- Prism accuracy: 1 mm + 1.5 ppm Prism/2.0 mm + 2 ppm DR
- Range: 3,000 m Prism/500 m DR
- Weight: 4.4 kg
- Tilt sensor: Dual axis
- Operating temperature: -20°C to + 50° C
