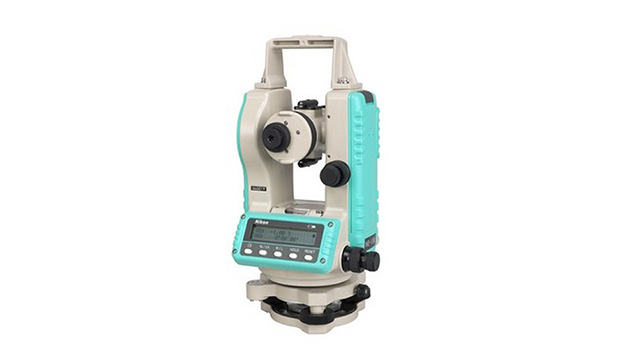

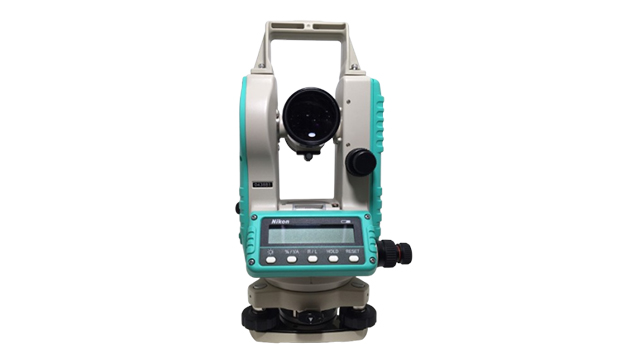

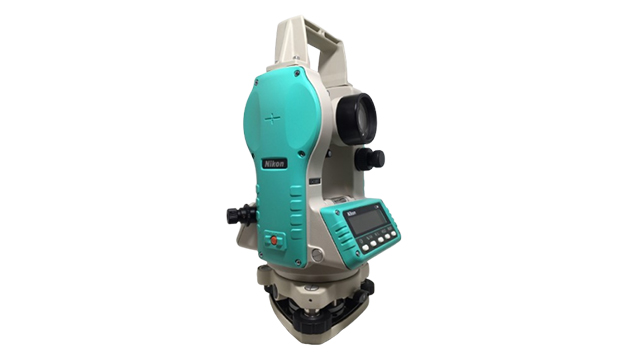

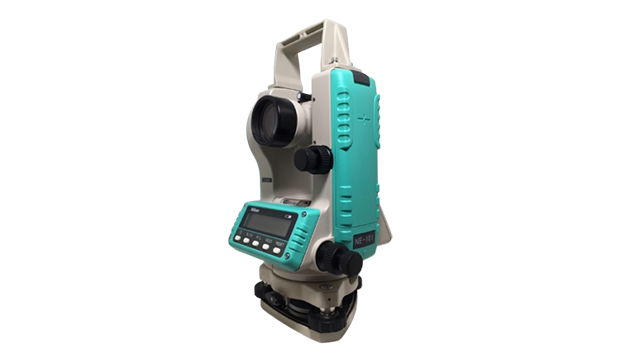

Nikon Theodolite NE-101/NE-100
- The NE‑101 model offers 7″ angular accuracy, while the NE‑100 provides 10″, and higher-end NE‑102/103 models reach 5″ with additional compensation features.
- Equipped with a 30× magnification erect-image telescope (45 mm objective, FOV 1°20′) along with a built-in reticle illuminator and backlit LCD, enabling clear sighting in low‑light environments like tunnels or dusk.
- NE‑100/101 models are rated IP54, protecting against dust and splashes, making them reliable for tough site conditions; the NE‑102/103 are waterproof (IP56).
- Powered by six standard AA batteries, they deliver approximately 48 hours of continuous operation or 22 hours with manganese cells. A battery-level bar graph provides real-time monitoring.
- Features an ergonomic keypad with five one-touch keys for functions such as zeroing horizontal angles, slope grading, and locking measurements.
Electronic Digital Theodolite – Nikon NE-101/NE-100
Discover a new standard in field layout precision with KBSE’s Nikon NE‑101/NE‑100 Series Theodolites, designed for professionals seeking accuracy and simplicity on every job. Whether you're staking construction points or conducting site surveying, these instruments deliver dependable performance in diverse conditions. The NE‑100 Series features ergonomic one-touch keypads and large backlit LCD displays for intuitive, efficient use even in tunnels or low-light environments. Models offer angular accuracy options of 10″ (NE‑100) or improved 7″ (NE‑101), ensuring reliable measurements for general construction purposes. With a 30× magnification telescope and a 45 mm objective, target visibility remains sharp across long distances. All models run on six standard AA batteries, delivering up to 48 hours of continuous operation with battery status shown via on-screen bar graph. Rated IP54 for splash resistance (NE‑100/101) and IP56 for full waterproof/dust protection (NE‑102/103), these theodolites stand tough in demanding environments. KBSE offers these models as reliable, easy-to-use tools that make site layout fast, accurate, and stress-free.
Specifications
- 7" and 10" angle accuracies
- Large display and keyboard
- Alkaline (standard AA) batteries with battery life indicator
- Water and dust resistant
- Illuminated display and telescope
- Superior Nikon optics
- Small carrying case
