South N6 Series
- 2" / 5" Accuracy
- Long-Range Prism (5000m) and Non-Prism (1000m/1500m) EDM
- Trigger Key, Hot key for faster operation
- Cable-Free Connection by Wireless Bluetooth or USB Stick
- Bigger internal memory, Save 96000 data block
- Longer operation Time up to 10 hours per battery

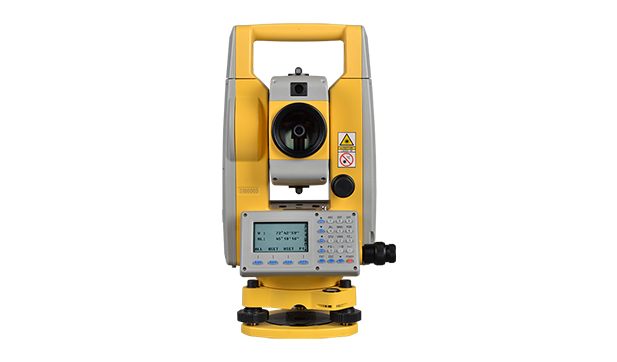

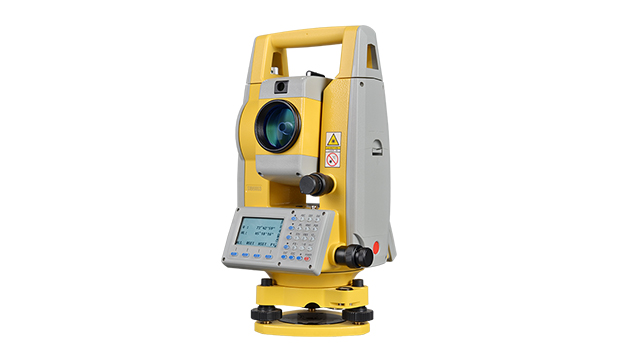

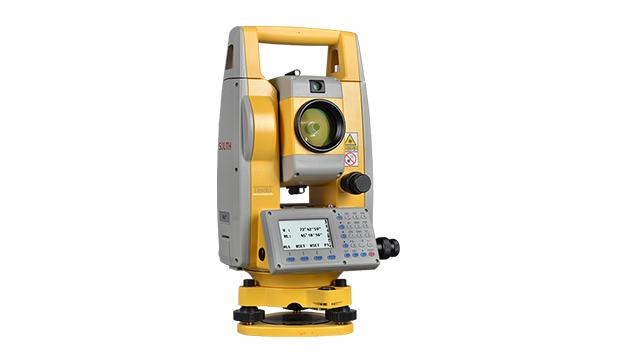

South Reflectorless Total Station - South N6 Series
The SOUTH N6 Series comprises manual reflectorless total stations engineered for surveying and construction professionals. They deliver high accuracy with angle measurement options of 2″ or 5″, and support long‑range EDM: up to 5,000 m with prism and 1,000 m or 1,500 m in reflectorless mode—with distance precision of ±(2 + 2 ppm × D) mm (prism) and ±(3 + 2 ppm × D) mm (non-prism) in good conditions. Featuring a 30× erect-image telescope (1°30′ FOV, resolving power ~3″, minimum focus ~1.2 m), dual-axis liquid-electric tilt compensation (±4′, 1″ accuracy), and fast EDM (fine < 0.3 s, tracking < 0.1 s). Equipped with a dual-face 6‑line LCD, 24‑key alphanumeric keypad, internal memory for ~96,000 data points, and USB/SD/Bluetooth data connectivity (range ~10 m). Powered by a 7.4 V, 5,000 mAh lithium battery providing roughly 8–16 hours field runtime, the instrument weighs ~5.5 kg, operates from −20 °C to +50 °C, and meets IP55 protection standards.
Specifications
- Reflector Range: 5000m*¹
- Reflectorless*² Range: 1000m or 1500m
- Accuracy: Reflector: ±(2+2ppm x D)mm
- Measuring Interval: With Reflector: Fine < 0.3s, Tracking < 0.1s
- EDM Type: Coaxial
- Accuracy: 2” or 5”
- Reading System: Absolute Encoding
- Circle Diameter: 79mm
- Minimum Increment: 1”/5”
- Detection Method: Horizontal: Dual, Vertical: Dual
- Image: Erect RMS
- Tube Length: 154mm
- Effective Aperture: 45mm (EDM:50MM)
- Magnification: 30x
- Field of View: 1°30’
- Minimum Focus Distance: 1.2m
- Resolving Power: 3”
- System: Dual Axis Liquid-Electric
- Communication Ports: USB Port
- Magnification: 3x
- Dimension: 190mm x 195mm x 335mm
