Nikon NIVO™ C Series
- Available in four precision grades—1″, 2″, 3″, and 5″—to suit everything from high-end engineering surveys to general construction tasks.
- Features a colour touch LCD (QVGA 320×240 px) on face 1 and a graphic display on face 2, running full Survey Pro, Survey Basic, or Layout Pro software built-in.
- Fast, long-range EDM supports both prism (3,000–5,000 m) and reflectorless (~270–300 m) measurements. Includes an integrated coaxial red laser pointer for rapid aiming.
- Equipped with two hot-swappable batteries, providing 26+ hours of continuous operation (some models up to ~28 hrs) without powering down.
- Compact, lightweight, and robust (IP66 water/dust rating). Comes with dual-axis compensator, optical plummet (optional laser plummet), USB high-speed port, RS-232, wireless Bluetooth, and USB stick support.

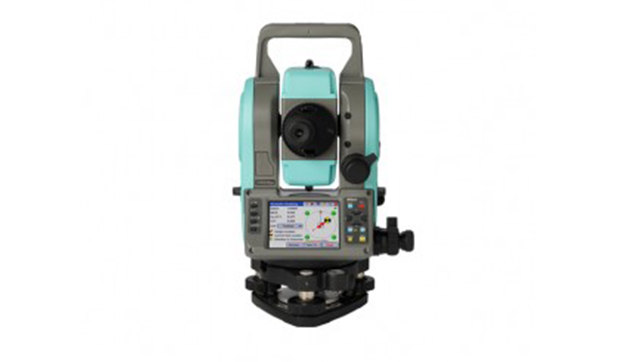

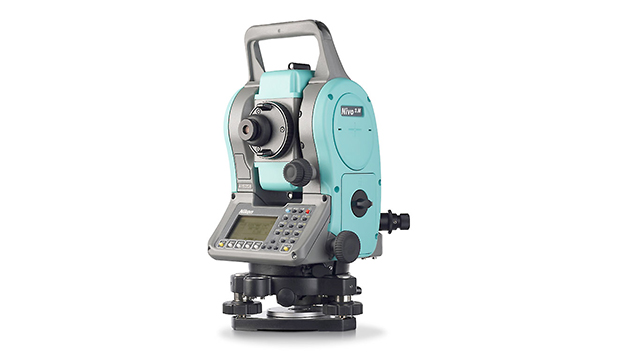

Nikon NIVO™ C Series Total Station
The Nikon Nivo™ C Series offers field professionals an unmatched combination of power, precision, and portability. These instruments redefine efficiency for layout, topographic mapping, and construction layout, whether you’re working on dense urban sites or remote terrain. With selectable angular accuracies of 1″, 2″, 3″, or 5″, and both prism-based and reflectorless EDM performance up to 500 m without prism you get the flexibility to work fast and accurately even when access is limited or visibility is poor. The series runs on Spectra Precision Survey Pro, Survey Basic, or Layout Pro software directly on a Windows CE touchscreen, eliminating the need for external field controllers. Additional productivity features include dual-face LCDs with a second-face keypad, hot-swappable batteries for uninterrupted work, and Bluetooth and USB connectivity for fast data transfer. Built with Nikon’s legendary optics, optional laser plummets, and IP66-rated ruggedness, the Nivo™ C Series is compact, dependable, and built to deliver reliable measurements anywhere.
Specifications
- Sensitivity of circular level vial: 10'/2 mm
- Image: Erect
- Magnification: 3×
- Field of view: 5°
- Focusing range: 0.5 m (1.6 ft) to ∞
- Display face 1: QVGA,16 bit color, TFT LCD, backlit (320x240 pixel)
- Display face 2: Backlit, graphic LCD (128x64 pixel)
- Memory: 128 MB RAM, 128MB Flash memory
- Processor: Marvell PXA300 XScale 624 MHz
