Nikon AP/AC/AX Series

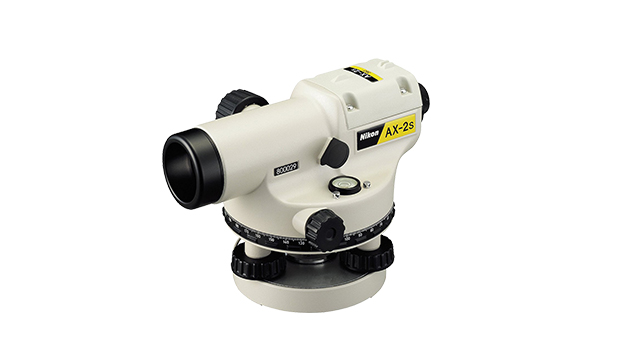

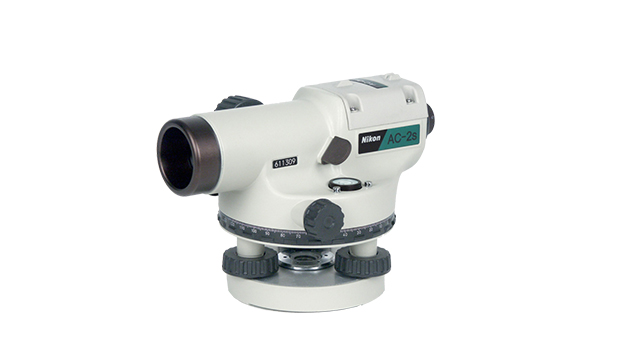

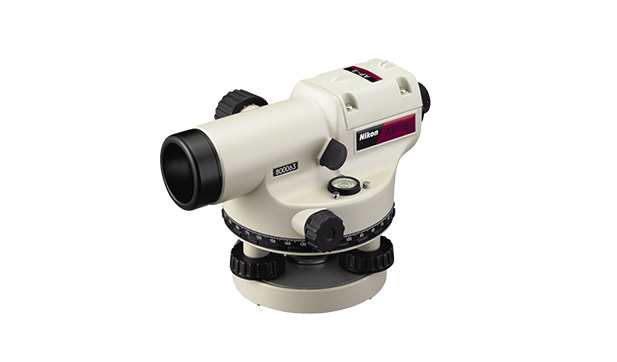

- AP‑8 offers 28×, AC‑2S 24×, and AX‑2S 20× optical magnification to suit various job requirements.
- Features a magnetic automatic compensator with a ±16′ range and ±0.5″ setting accuracy, ensuring level sight lines without manual fine-tuning.
- Compact, lightweight metal housing with water-resistant design allows operation in light rain, dust, and outdoor conditions.
- Twin-sided, continuous horizontal tangent drives with unlimited rotation range; detachable eyepiece makes close-quarter work easier.
- Minimum focus distance of just 0.75 m (2.46 ft); includes stadia lines with a standard 1:100 ratio for quick distance estimation.
Automatic Levels for Surveying and Construction - Nikon AP/AC/AX Series
kbse proudly offers the rugged and precision-engineered Nikon AP/AC/AX Series automatic levels, designed to deliver unmatched accuracy on-site. These models AP‑8 (28×), AC‑2S (24×), and AX‑2S (20×) feature Nikon’s world-renowned optics that transmit more light for brighter, sharper views even in dim conditions, improving ease of sighting and reducing eye strain. Compact and lightweight at just 2.8 lb (1.25 kg), they’re built with durable, water-resistant bodies to stand up to dust and light rain. Each instrument includes a magnetic-damped automatic compensator (± 16′ range, ± 0.5″ setting accuracy) to ensure reliable level lines under vibration. Smooth and limitless horizontal tangent knobs allow precise angular adjustments, operable with either hand. They attach to both flat- and spherical-head tripods, making setup fast and versatile. A detachable eyepiece supports optional diagonal prism use, ideal for working in confined or steep environments. Finally, all three models focus down to just 0.75 m, allowing accurate measurements even in tight spaces.
Specifications
- Tube length: 190 mm (7.5 in)
- Image: erect
- Magnification: 28x, 24x, 20x
- Effective diameter of objective lens: 30 mm (1.2 in)
- Field of view: 1°30’(2.6 ft @ 100 ft)
- Minimum focusing distance: 0.75 m (2.46 ft)
- Circular level: 10’/2 mm
- Diameter of circle: 110 mm (4.3 in)
- Minimum increment: 1°/1 g
