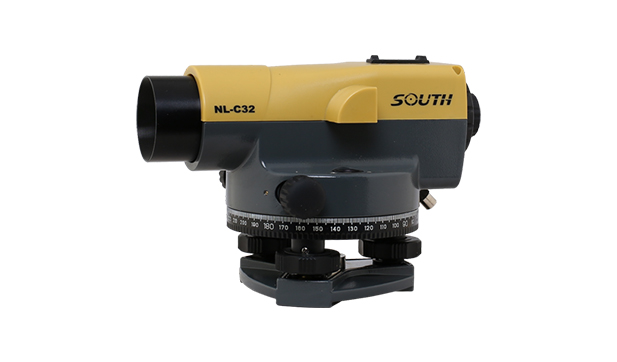

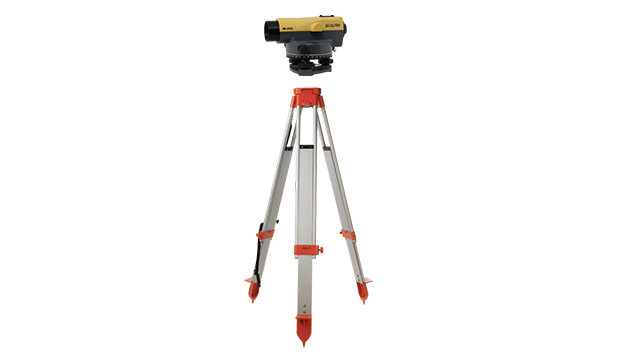

South NL-C32
- Offers 32× magnification with a 40 mm objective, delivering a clear, erect image and a wide field of view (1°20′ ≈ 2.3 m @100 m), ideal for fast target acquisition in fieldwork.
- Features an air-damped compensator with ±15′ operating range and high setting accuracy (±0.3″), settling in under 3 seconds for reliable auto-leveling.
- Ensures professional-grade performance with a standard deviation of only 1.0 mm over a double-run leveling of 1 km.
- Lightweight (≈1.8 kg), compact, and built to IP54 dust/water resistance standards; performs reliably between –20 °C to +50 °C.
- Focuses down to 0.3 m for near inspections, includes a crosshair reticle with stadia (multiplication constant=100, additive=0), and an 8′/2 mm bubble for quick setup.
Automatic Level Survey Instrument - China NL-C32
kbse proudly serves as the authorized provider of the China NL‑C32 automatic level in Pakistan, offering survey instruments that deliver excellent value without compromising on quality. This model features 32× magnification, a minimum focusing distance of 0.6 m, and a magnetic damping compensator with ±15′ range, ensuring fast and stable self‑leveling for precise topographic work. Crafted with an IP65-rated rugged body, the NL‑C32 resists dust and water, making it ideal for demanding field environments. With cross reticle optics, a 2.3 m/100 m field of view, and ±0.3″ compensator accuracy, it achieves ±1.0 mm deviation over 1 km double‑run leveling. Lightweight at ~1.8 kg, the instrument is easy to carry and quick to set up on-site, while offering dependable measurement and long-term durability.
Specifications
- Magnification: 32x
- Effective Objective Aperture: 40mm
- Field of View: 1°20′ (2.3m /100m)
- Compensator Type: Air Damping
- Compensator Range: ±15′
- Compensator Setting Time: ＜3s
- Circle Graduation: 360° or 400 gon (Minimum 1°or 1 gon)
- Included Lens: Fixed focal length , manual focus
- Net Weight per Unit: 1.8kg
