South H10
- Qualcomm 8-core 2.0GHz processor, offering the Qualcomm Quick Charge 3.0 (QC3.0) technology, this technology enables significantly faster charging speeds compared to standard USB charging (Charges to 90% battery in four hours, charging time is max 5 hours).
- 5.5-inch touch screen, 5% larger, provides a more immersive viewing experience for topographic survey, stakeout, AR and photogrammetry.
- Android 11 OS (supports GMS), included several under-the-hood optimizations and improvements to enhance overall performance, stability, and security on H10, fully supports Survstar regular data-collecting functions as well as the latest AR stakeout and photogrammetry functions.
- The IP68 rating provides assurance that H10 can withstand exposure to dust and waters without compromising performance, ensuring accurate and reliable measurements even in dusty and highly humidity conditions.
Professional-Grade Android Controller - South H10

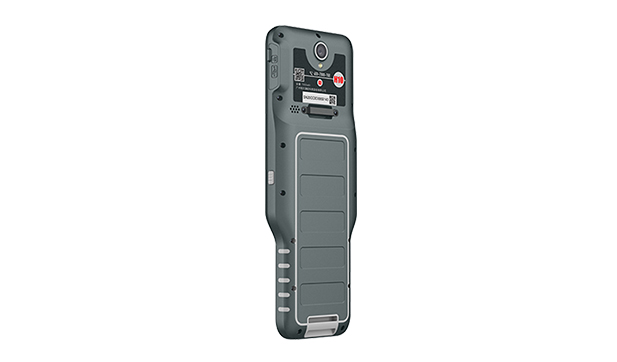

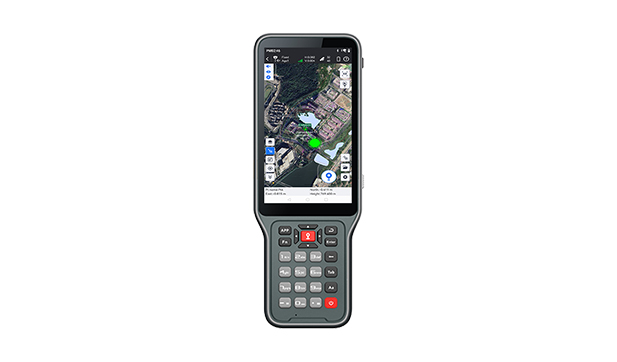

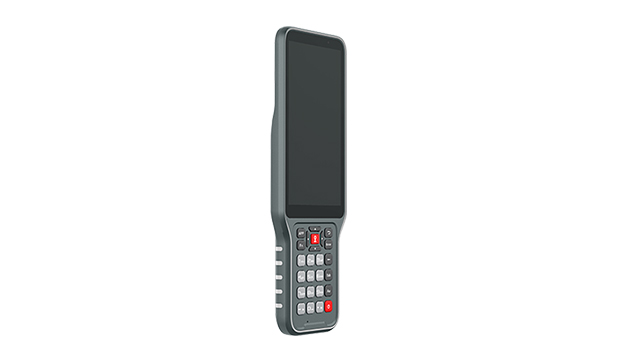

The SOUTH H10 is a professional-grade Android controller powered by Android 11 on an octa‑core 1.8 GHz CPU, paired with 4 GB RAM and 64 GB storage, expandable via micro‑SD. It features a 5.5″ sunlight-readable touchscreen (resolution 720×1280) alongside a 25-key physical keypad, ideal for field data input even with gloves or in wet conditions. With a built-in 7000 mAh Li‑ion battery supporting Quick Charge 3.0, it charges to 90% in roughly 4 hours and delivers up to 16 hours of operation. Built for tough environments, it meets IP68 waterproof/dustproof standards, withstands 1.2 m drops, and operates from –20 °C to +70 °C. Connectivity includes 4G cellular (nano-SIM), Wi‑Fi 802.11a/b/g/n/ac, Bluetooth v5.0 (range ~20 m), and NFC, supported by multiple sensors such as gyroscope, e-compass, G‑sensor and ambient light sensor. GNSS support covers GPS, GLONASS, BeiDou, and Galileo, making it ideal for RTK surveying, GIS, stakeout operations and AR-assisted fieldwork. With its rugged build, numeric keypad, Android support and long battery life, the H10 is a reliable choice for precision surveying and mapping in demanding field conditions.
Specifications
- Operating system: Android 11
- CPU: 8-core CPU, 2.0GHz
- RAM: 4GB
- Display: 5.5-inch TFT, 720*1280 (16:9), touchscreen
- USB: Type-C,USB3.0
- WiFi(WLAN): 802.11a/b/g/n/ac (2412-2484MHz, 4915-5925MHz)
- Bluetooth: BT5.0 (2402-2480MHz)
- Battery: 7000mAh, Operating time 15hrs
- Camera: 13 MP, AF
