South ALPS2
- Measure More & Farther, in shorter time.
- Measure at Day or Night, by Your Need.
- Measure the Unreachable, break the limit.
- Keep You Away from Dangers, Safe than Ever.

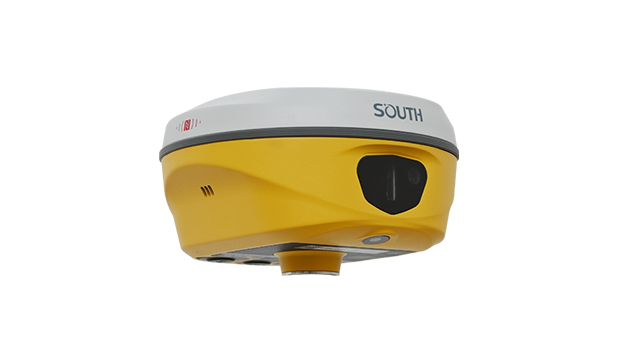

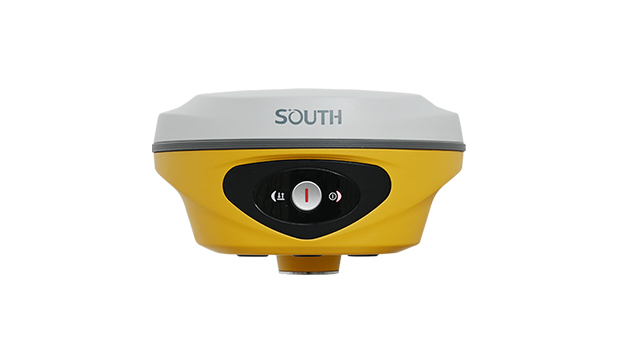

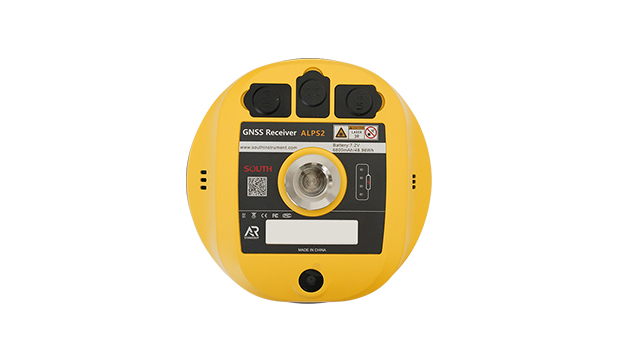

RTK GNSS Receiver - South ALPS2
The SOUTH ALPS2 is a compact, high-precision RTK GNSS receiver designed for advanced surveying, construction layout, and AR-assisted stakeout. It offers centimeter-level accuracy, ideal for complex or hard-to-reach environments. Equipped with 1,698 channels, full-constellation GNSS support, dual cameras (8 MP + 2 MP), 30 m green laser, and IMU tilt compensation (up to 60°), it enables fast, visual, and remote measurement. The IP68-rated receiver runs up to 25 hours, with 4G, Bluetooth 5.0, NFC, UHF radio, and Wi-Fi hotspot connectivity making it perfect for modern, efficient field workflows.
Specifications
- Channels: 1698
- Camera: Front Camera: 8MP, Bottom Camera: 2MP, (Live View AR stakeout)
- Laser: 3R green laser, 30m working range
- Operating System: Linux
- GPS: L1C, L1C/A, L2C, L2P(Y), L5
- GLONASS: G1, G2, G3
- SBAS: L1*
- MSS L-Band: Reserve
- Positioning Output Rate: 1Hz~20Hz
- Initialization Time: < 10s
- Rapid Static: Horizontal: 2.5 mm + 0.5 ppm RMS
- RTK Initialization Time: 2~8s
- IMU Tilt Angle: Optimal accuracy within 120°
- Dimension: 134mm(φ)×79mm(H)
- Weight: 860g (battery included)
- Material: Magnesium aluminum alloy shell
- Power Supply: 6-28V DC, overvoltage protection
- NFC Communication: Support
